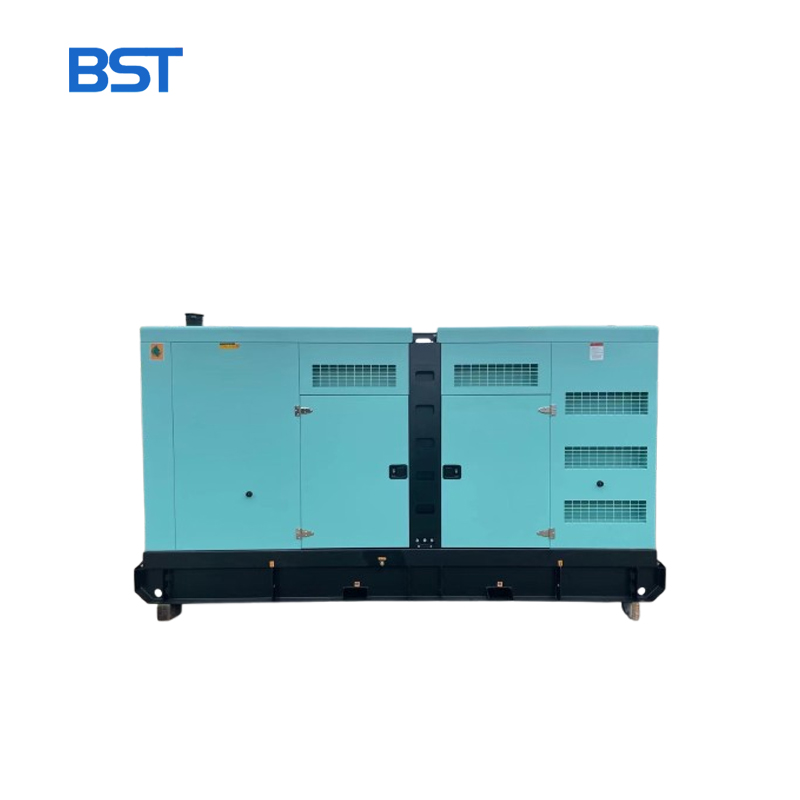

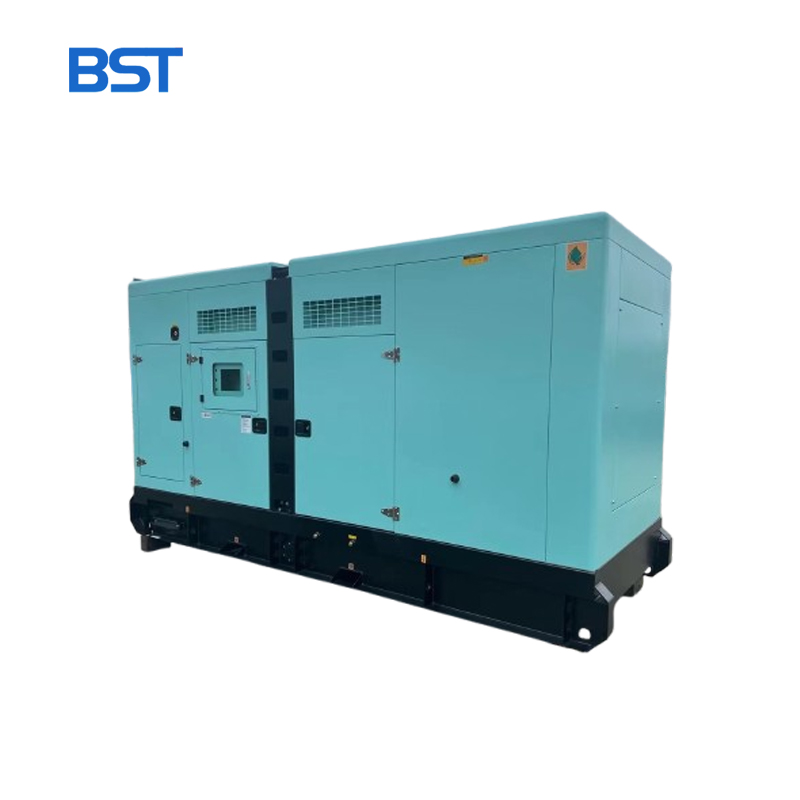

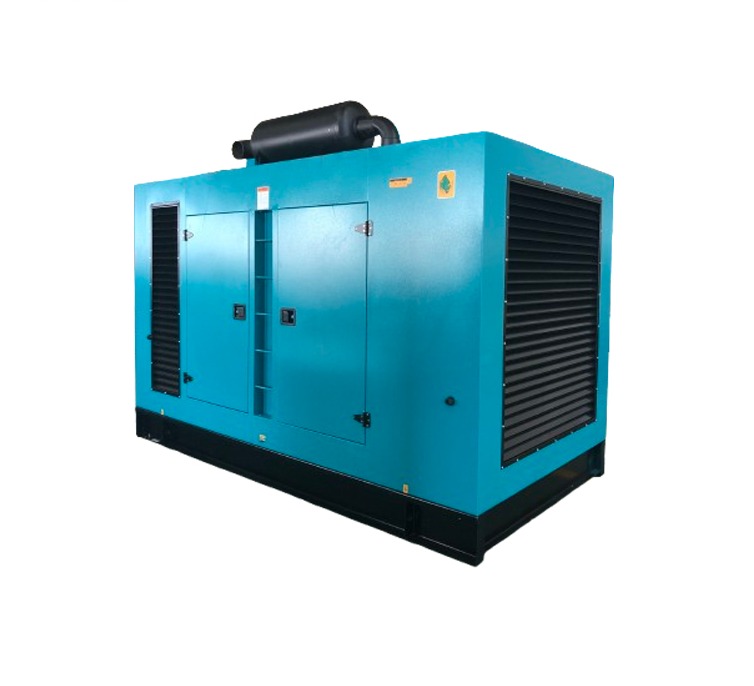

Big Brand 150kw 60hz Three Phase Electric Start Soundproof Silent Diesel Generators
1. Product Features
Precision Combustion System: Advanced control of fuel injection and air intake ensures optimal combustion across all operating loads, achieving complete fuel burn with minimized emissions.
Robust Corrosion Protection: Multi-stage protective coating with chemical pretreatment significantly enhances surface durability for harsh-environment operation.
Intelligent Thermal Management: Engineered ventilation with thermal radiation shielding maintains stable operating temperatures under demanding conditions.
Advanced Acoustic Control: Specialized noise-absorbing materials and structural engineering effectively reduce mechanical noise transmission.
Extended Fuel Capacity: Integrated high-capacity fuel system enables continuous operation with convenient refueling features.
-
Medical & HealthcareWhatever you needs, CARESTONE is at your side. -
Beauty SPA & HairdressingWhatever you needs, CARESTONE is at your side. -
Food Processing & CateringWhatever you needs, CARESTONE is at your side.
--------------占位---------------
2.Smart Control System
Adopt BST intelligent module. When the city power is cut off (or other units start signal), the unit will automatically start (1 to 8 times adjustable, first start success rate > 99%) after delay confirmation (0~30s adjustable), and supply power to the load after automatically confirming that the generator set is powered normally. After the city power is restored to normal, it will automatically cool down and stop (0-300s adjustable) after delay confirmation (0~30s adjustable). It also has basic protection functions, digitally displaying parameters such as voltage, current, frequency, running time, battery, voltage, speed, etc.
3. Safety Protection system
Leakage protection: With a highly safe NFB (non-fuse) leakage protection device. When it senses leakage, it will instantly cut off the circuit and alarm. The device also has an overload protection function.
High Temp. protection: With high temperature marks and alarms where with high temp, operations on the touch screen without the directly touch with the generator.
Automatic alarm: With a monitoring system and an emergency stop device. The alarm adopts light and sound, which is durable and reliable. The emergency shutdown circuit to completely eliminate the risk of electric shock that may occur during restarting.
4.Special silent design
Good acoustic effect:
Excluding external noise, 7 meters outside the power station is about 75 decibels.
Corrosion protection:Cold-rolled steel body with Zinc phosphate and polyester powder coating for a long-lasting new look;
Convenient transportation:
Skeleton structure, modular design;
High-strength soundproof box chassis;
Lifting lugs are set on the top of the soundproof box;
