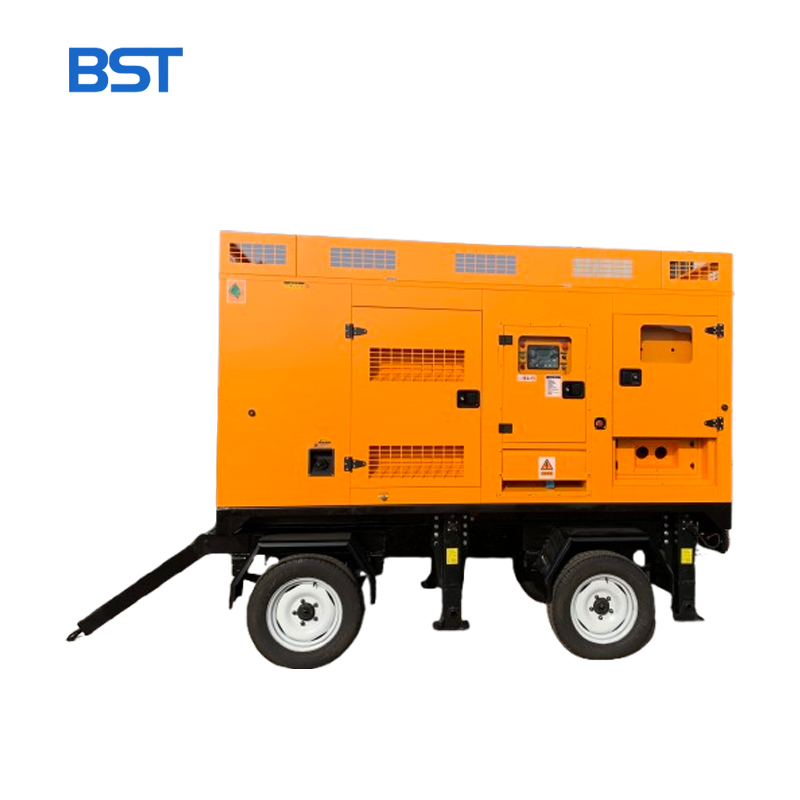

High Quality Movable Power 60KW 80KW 100KW Diesel Generator Set with Trailer-Mounted Design
For the Diesel generators we have many models for customers' choice, you can choose famous motor brands below：
1.Multiple Models for Option:
Besten can not only supply the Diesel generator for Family or personal using from 10kva, 20kva, 50kva etc., but can also supply the heavy duty industrial Diesel generators like 800kw, 1000kw, 2000kw or bigger, which can solve the plant power supply problems. Just tell us your requirements we can offer you a solution plan.
2.Smart Control System
Adopt BST intelligent module. When the city power is cut off (or other units start signal), the unit will automatically start (1 to 8 times adjustable, first start success rate > 99%) after delay confirmation (0~30s adjustable), and supply power to the load after automatically confirming that the generator set is powered normally. After the city power is restored to normal, it will automatically cool down and stop (0-300s adjustable) after delay confirmation (0~30s adjustable). It also has basic protection functions, digitally displaying parameters such as voltage, current, frequency, running time, battery, voltage, speed, etc.
3. Safety Protection System
Leakage protection: With a highly safe NFB (non-fuse) leakage protection device. When it senses leakage, it will instantly cut off the circuit and alarm. The device also has an overload protection function.
High Temp. protection: With high temperature marks and alarms where with high temp, operations on the touch screen without the directly touch with the generator.
Automatic alarm: With a monitoring system and an emergency stop device. The alarm adopts light and sound , which is durable and reliable. The emergency shutdown circuit to completely eliminate the risk of electric shock that may occur during restarting.

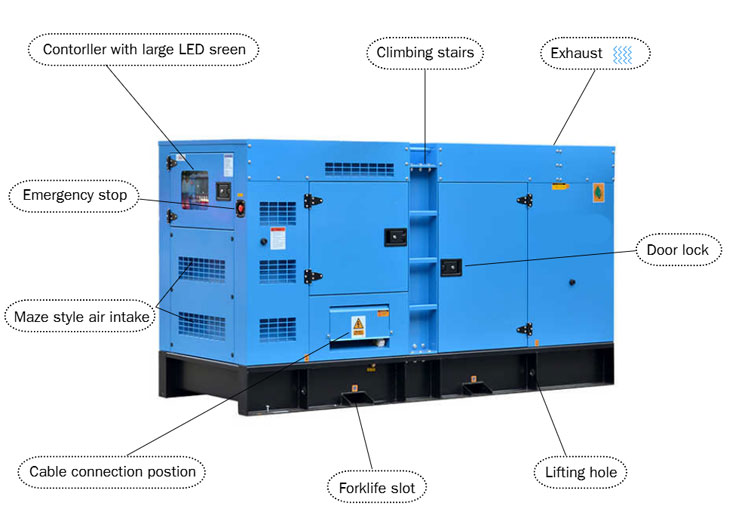

4.Special Silent Design
Good acoustic effect:
Excluding external noise, 7 meters outside the power station is
about 75 decibels.
Corrosion protection:Cold-rolled steel body with Zinc phosphate and polyester powder coating for a long-lasting new look;
Convenient transportation:
Skeleton structure, modular design;
High-strength soundproof box chassis;
Lifting lugs are set on the top of the soundproof box;
Parameters
| Model No. | BST-30 | BST-40 | BST-50 | BST-60 | BST-80 |
| Rated Output Power (KW) | 3KW | 5KW | 6KW | 8KW | 10KW |
| Rated AC Voltage (V) | 110V/220V | 110v/220v/380V | |||
| Rated Frequency (Hz) | 50Hz/60Hz | ||||
| Engine Speed（R.P.M） | 3000 rmp | ||||
| DC Output (V/A) | 12V/8.3A | ||||
| Starting System | Automatic Start, Recoil Start, Remote Start, Electric Start | ||||
| Noise Level（dB） | 80~85dB | ||||
| Continuous Operating Time (hr) | 15 | 14 | 13 | 12 | 11 |
| Engine Type | Single cylinder, vertical, four-stroke air-cooled diesel engine | ||||
| Displacement（cc） | 296cc | 418cc | 456cc | 490cc | 530cc |
| Bore*Stroke (mm) | 73*70mm | 88*72mm | 90*75mm | 92*75mm | 95*75mm |
| Fuel Consumption (g/KW.h) | 295 | ||||
| Fuel Types | No.0 or No. -10 Light Diesel, No.0 or No. -10 Clean Diesel | ||||
| Fuel System | Direct Injection | ||||
| Standard Configuration | Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alarm Voltmeter, AC Socket | ||||
| Function Options | Four-sided Wheels, Digital Instrument, ATS, CNC Meter, Remote Start | ||||
| Packing Size (mm) | 1100*600*800mm | ||||
| Gross Weight (KG) | 150KG | 155KG | 160KG | 165KG | 170KG |
By controlling our entire manufacturing process and optimizing supply chains, Besten Machinery delivers premium diesel generators at competitive prices. Our goal is to offer cost-effective power solutions without sacrificing quality, reliability, or service excellence, making us a preferred partner for global clients.
Q: Is the noise level low enough for residential areas?
A: With 3-layer acoustic enclosures, noise is reduced to 75 dB(A) at 7 meters.
Q: What is Your lead time?
A: Standard lead time: 10-20 workdays after order confirmation.
· Stock units (e.g., 100KW silent) ship in 7-10 days.
· Customized orders (+5-7 days for ATS/IoT options).
· FOB/CIF docs ready in 3 days.
Q: Do you conduct 100% testing before shipping?
A: Yes, every generator undergoes 100% quality validation testing prior to shipment, and we provide the corresponding test video for your review.
